What Exactly is a 5C Collet Chuck?
Think of your 5C collet chuck as a specialized, super-accurate vise for your lathe. While standard three-jaw or four-jaw chucks are versatile, they often have limitations when gripping very small or irregularly shaped parts, or when repetitive accuracy is paramount. This is where the 5C collet system comes in. It’s designed to hold cylindrical or hexagonal stock with incredible precision.
The “5C” refers to a specific standard size of collet and the associated chuck. This standard is widely adopted in the machining world, meaning you can find a huge variety of collets for different stock sizes and shapes, plus chucks and accessories from many manufacturers. It’s a robust, reliable system that offers significant advantages for many turning and milling operations.
Why Use a 5C Collet Chuck? The Advantages
The benefits of using a 5C collet chuck are substantial, especially for tasks requiring high precision and concentricity. Let’s break down why it’s a favorite among machinists:
- Unmatched Accuracy: Collets are known for their ability to hold workpieces perfectly centered. Unlike jaws that might slightly push or deform the workpiece, a collet grips around the entire circumference, resulting in much lower runout (wobble). This is crucial for operations like drilling small holes, turning precise diameters, or threading.
- Repetitive Operations: Need to make ten identical parts? With a 5C collet, you can load and unload stock quickly and with confidence that each piece will be held in the exact same position. This consistency saves a lot of time on setup and reduces errors.
- Grip on Small Diameter Stock: Standard chuck jaws can sometimes struggle to get a firm, centered grip on very thin or small diameter stock. Collets are designed to handle these situations with ease, preventing slippage and deformation.
- Quick Workpiece Changes: Many 5C systems allow for very fast changes between different collets and workpieces, especially when using a collet closer system. This boosts productivity significantly.
- Reduced Workpiece Damage: The uniform gripping force of a collet is less likely to mar or damage delicate workpieces compared to the localized pressure from chuck jaws.
- Versatility: Beyond round stock, 5C collets are available for hexagonal, square, and even specialized shapes, expanding the range of projects you can tackle.
Understanding the Components of a 5C Collet Chuck System
Before we dive into using it, let’s get familiar with the key parts. A typical 5C collet chuck setup involves a few main pieces:
The Collet Chuck: This is the part that mounts to your lathe’s spindle. It has a tapered internal seat designed to perfectly match the taper of the 5C collets. There are several types of chucks:
- Direct Mount Chucks: These mount directly to the lathe spindle nose, often with a threaded connection.
- A2 Mount Chucks: These use a standardized A2 spindle nose mount, common on many modern lathes.
- Cam-Lock Chucks: Similar to A2, these use a cam system for quick, secure mounting.
The 5C Collet: This is the “business end” that grips your workpiece. It’s a hardened steel sleeve with a precisely machined taper on the outside and a corresponding bore on the inside. The front end of the collet has internal threads or a slot for engaging with the chuck’s mechanism. Collets are sized for specific stock diameters, usually in increments of 1/64″ or 1mm.
The Collet Closer Mechanism: This is what actuates the collet, opening and closing it to grip or release the workpiece. The most common types include:
- Screw-Type Closer: Often a handwheel or lever system that threads into the back of the chuck and pulls the collet into its seat, closing it.
- Lever-Type Closer: Uses a lever mechanism for faster operation.
- Air or Hydraulic Closers: For production environments, these provide automated and powerful clamping.
The Workpiece: This is the material you’ll be machining, typically round stock for a standard 5C collet.
How to Mount a 5C Collet Chuck to Your Lathe
Mounting the chuck securely is the first critical step. The method will depend on your lathe’s spindle type. Always consult your lathe’s manual for specific instructions.
General Steps (Threaded Spindle Example):
- Clean the Spindle Nose: Thoroughly clean the threads on both the lathe spindle and the back of the chuck. Any dirt or debris can cause misalignment and affects accuracy.
- Install the Appropriate Collet (Optional but Recommended): For direct mount or screw-type closers, it’s often easier to insert the correct collet into the chuck before mounting. This adds weight but can help align things.
- Thread the Chuck onto the Spindle: Carefully thread the chuck onto the spindle nose in the direction that tightens it during normal lathe operation (unless your manual specifies otherwise). Hand-tighten as much as possible.
- Secure the Chuck: Use a spanner wrench or chuck key (if applicable) to fully tighten the chuck onto the spindle. For threaded spindles, you might need to engage locking pins or mechanisms. Always ensure the chuck is tightened securely. A loose chuck is extremely dangerous.
- Check for Runout (If possible): After mounting, you can use a dial indicator to check the runout of the chuck’s mounting face. It should be very low, typically within a few ten-thousandths of an inch.
For A2 or Cam-Lock Spindles: Follow the specific procedure for your lathe’s spindle mount, usually involving aligning dowel pins and engaging locking mechanisms.
Choosing the Right 5C Collet
Selecting the correct collet is vital for a secure and accurate grip. 5C collets are sized for the workpiece diameter they are intended to hold.
- Workpiece Diameter is Key: Purchase collets that are just slightly larger than the diameter of the stock you intend to hold. For example, if you have a 1/2″ diameter rod, you would use a 1/2″ 5C collet.
- Size Increments: Collets are typically available in 1/64″ increments for inch-based systems and 1mm increments for metric systems. You can also find fractional inch collets (e.g., 1/4″, 1/2″, 3/4″).
- Material: Most 5C collets are made from hardened tool steel for durability and consistent grip.
- Shape: While round collets are most common, you can also find hexagonal, square, and step collets for specialized applications.
- Accuracy Class: High-precision collets are available for applications demanding the absolute highest accuracy.
A good starting set for most hobbyists might include collets for common stock sizes like 1/4″, 3/8″, 1/2″, 5/8″, and 3/4″.

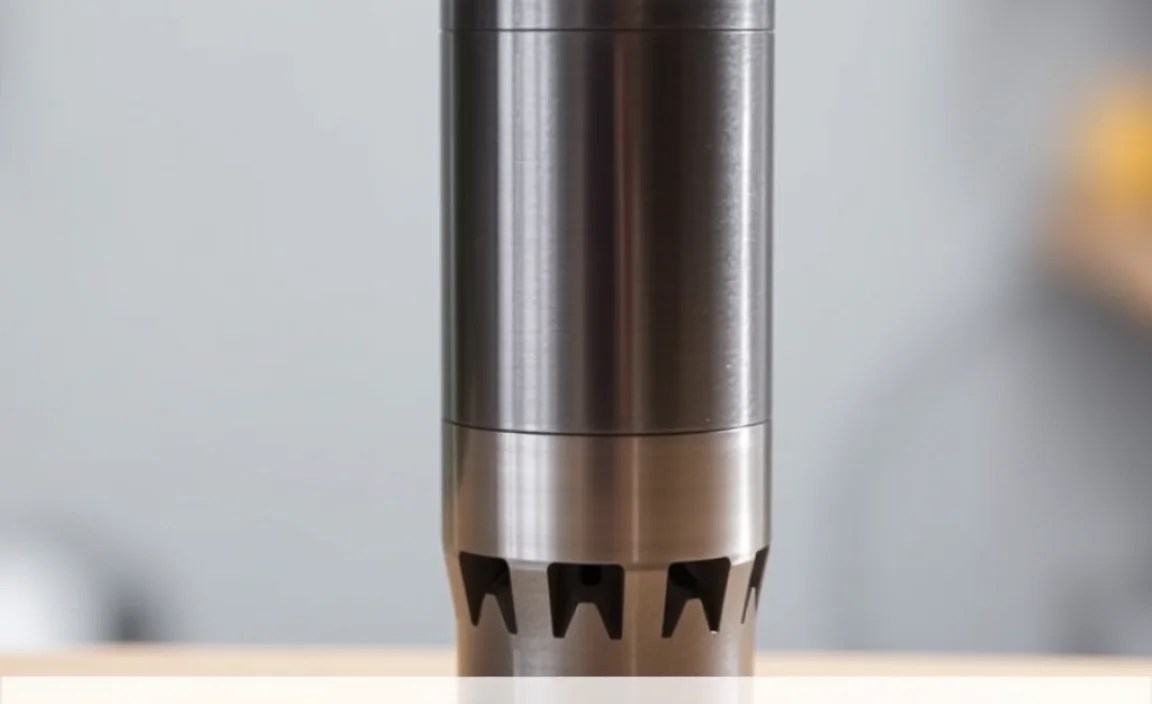

Inserting and Using a 5C Collet
Once the chuck is mounted and you have the correct collet, it’s time to put it to work. The process is straightforward but requires attention to detail.
- Ensure the Chuck is Open: If you have a collet closer, ensure it is in the “open” position. For screw-type closers, this means backing the mechanism out completely.
- Insert the Collet: Slide the correct 5C collet into the tapered bore of the chuck. The tapered surfaces should mate precisely. The collet should seat itself with a smooth feel.
- Position the Workpiece: Insert your stock material into the bore of the collet protrusion. It should slide in easily until it contacts the internal stop of the collet or the back of the chuck mechanism, if applicable.
- Engage the Collet Closer: Operate the collet closer to grip the collet.
- Screw-Type/Lever-Type: Turn the handwheel or operate the lever until the collet is firmly seated and gripping the workpiece. You’ll feel increased resistance as it tightens.
- Verify Grip: Once tightened, give the workpiece a gentle twist or pull to ensure it’s held securely. It should not move.
- Check for Runout: Use a dial indicator positioned against the workpiece. If your setup is precise and the collet is correct, you should see minimal runout, often less than 0.001″.
- To Release: Reverse the tightening process using the collet closer. This will pull the collet back, camming it out of its seat and releasing the workpiece.
Important Tip: Always ensure the collet and the chuck’s internal taper are clean and free of debris. Even a small chip can prevent the collet from seating properly, leading to poor grip and inaccurate results.
5C Collet Chuck Maintenance and Care
Like any precision tool, your 5C collet chuck and collets will perform best and last longer with proper care.
- Keep it Clean: After each use, wipe down the chuck, closer mechanism, and collets. Remove any metal chips, oil, or dirt. A light coating of machine oil can help prevent rust.
- Inspect Regular ly: Check collets for any signs of wear, damage, or distortion. Look for nicks or burrs on the mating tapers. Damaged collets should be replaced.
- Lubrication: Lightly lubricate the threads of screw-type collet closers and the tapered surfaces of the chuck and collets occasionally. Use a good quality light machine oil or a specialized paste lubricant.
- Storage: Store collets in a dedicated holder or a clean, dry drawer. Keep the chuck covered when not in use to protect it from dust and damage.
- Avoid Hammering: Never strike a collet or chuck component with a hammer to seat it. They are precision-ground and can be easily damaged.
Troubleshooting Common 5C Collet Chuck Issues
Even with the best practices, you might encounter a few hiccups. Here are some common problems and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Excessive Runout | Incorrect collet size (too large or too small) | Use a collet that is the correct size for your workpiece. |
| Excessive Runout | Dirt or debris on collet or chuck taper | Thoroughly clean the collet, chuck taper, and spindle bore. |
| Workpiece Slipping | Collet not sufficiently tightened | Tighten the collet closer mechanism more firmly. |
| Workpiece Slipping | Worn or damaged collet | Inspect collet for damage and replace if necessary. |
| Collet Difficult to Insert/Remove | Dirt or damage on tapered surfaces | Clean or inspect for damage. Ensure the collet closer is fully open. |
| Collet Difficult to Insert/Remove | Incorrect collet type for the chuck | Ensure you are using a genuine 5C collet in a 5C chuck. |
| Chuck Hard to Mount on Spindle | Damaged spindle threads or chuck threads | Inspect threads carefully. Clean if dirty. Seek professional repair if damaged. |
Comparing 5C Collets to Other Workholding Methods
It’s helpful to see how the 5C collet chuck stacks up against other common lathe workholding solutions for beginners.
| Workholding Method | Primary Use | Pros for Beginners | Cons for Beginners |
|---|---|---|---|
| 3-Jaw Universal Chuck | General purpose, quick setup for round stock | Easy to align, versatile for many tasks. | Lower accuracy than collets, can mar workpieces, limited on very small stock. |
| 4-Jaw Independent Chuck | Irregular shapes, large diameter stock, centering tasks | Can grip oddly shaped items, allows for precise centering of non-round stock. | Slowest setup, requires alignment skill, can be challenging for beginners to center accurately. |
| 5C Collet Chuck | Small diameter, high-accuracy round or hex stock | Excellent concentricity, repeatable holding, fast changes with closers. | Requires correct collet size, limited to specific stock shapes/sizes without special collets, initial investment. |
| Faceplate | Very large / custom work, mounting between centers | Secure mounting for large or oddly shaped items. | Requires custom fixtures, very time-consuming setup, not for small parts. |
Where to Find Reliable 5C Collet Chuck Information and Parts
When investing in tooling, it’s always best to go with reputable sources. For 5C collet chucks and related accessories, consider these types of resources:
- Manufacturer Websites: Companies like Hardinge, Lyndex-Nikken, Techniks, and Shars Tool offer detailed product specs, manuals, and sometimes helpful articles.
- Specialty Tool Suppliers: Online retailers that focus on machining tools often have extensive catalogs and customer reviews.
- Machining Forums and Communities: Websites like Practical Machinist or Home Model Engine Machinist have experienced users who share their knowledge and can offer advice on specific products.
- Educational Resources: Organizations like the National Institute of Standards and Technology (NIST) sometimes publish standards or information related to precision machining.
- Authoritative Books: Look for well-regarded machining handbooks or textbooks that cover workholding.
Always ensure you’re purchasing from a trusted vendor to get quality tools that will perform reliably.
Frequently Asked Questions (FAQ) about 5C Collet Chucks
What is the main advantage of using a 5C collet chuck?
The primary advantage is its ability to hold workpieces with exceptional accuracy and concentricity, leading to very low runout. This makes it ideal for precise operations and repetitive tasks.
Can I use a 5C collet chuck for square or hexagonal stock?
Yes, you can! While standard 5C collets are for round stock, specialized hexagonal and square collets are available for holding those shapes accurately.
How do I determine the correct size 5C collet to buy?
You need to match the collet’s bore size to the diameter of the workpiece you intend to hold. If your stock is 1/2 inch in diameter, you’ll need a 1/2 inch 5C collet.
Is a 5C collet chuck difficult to set up?
Mounting the chuck to the lathe requires following your machine’s specific procedure. Using the collet and workpiece is generally straightforward, especially with a collet closer mechanism, making it easier than many other specialized workholding setups.
Are 5C collets expensive?
The initial investment for a set of 5C collets can add up, but they are considered a cost-effective solution for achieving high precision. Their durability and the time saved on setup and rework often justify the cost for serious hobbyists and professionals.
