Ever found yourself wishing you could make multiple identical wooden parts? Turning by hand is a skill, but consistency can be a real challenge, especially for beginners. If you’ve ever struggled to replicate a specific shape or size on your wood lathe, you’re not alone. The good news is you don’t need to be a seasoned machinist to achieve perfect symmetry. A wood lathe duplicator is the answer, and building one yourself is more achievable than you might think. This guide breaks down the process into simple, manageable steps, so you can add this fantastic tool to your workshop in no time.

Why Build a Wood Lathe Duplicator?

A wood lathe duplicator is a device that bolts onto your lathe and uses a master template, often a precisely cut piece of wood, to guide your cutting tool. As you move your tool along the template, the duplicator mechanism mirrors that movement onto your workpiece, producing an identical shape. This is incredibly useful for a variety of projects:

Reproducing Parts: Need to make four identical table legs, balusters for a staircase, or handles for a set of drawers? A duplicator ensures they’ll all look exactly the same.
Accuracy and Precision: It significantly reduces the guesswork involved in turning, leading to more accurate and symmetrical results than freehand turning, especially for complex profiles.
Efficiency: Once your template is made, you can quickly turn out multiple copies without constantly measuring and adjusting.
Learning Aid: For new woodturners, a duplicator can help you understand shapes and profiles better by letting you focus on the cutting action guided by a perfect example.
Cost-Effective: Commercial duplicators can be expensive. Building your own is a cost-effective way to gain this capability.

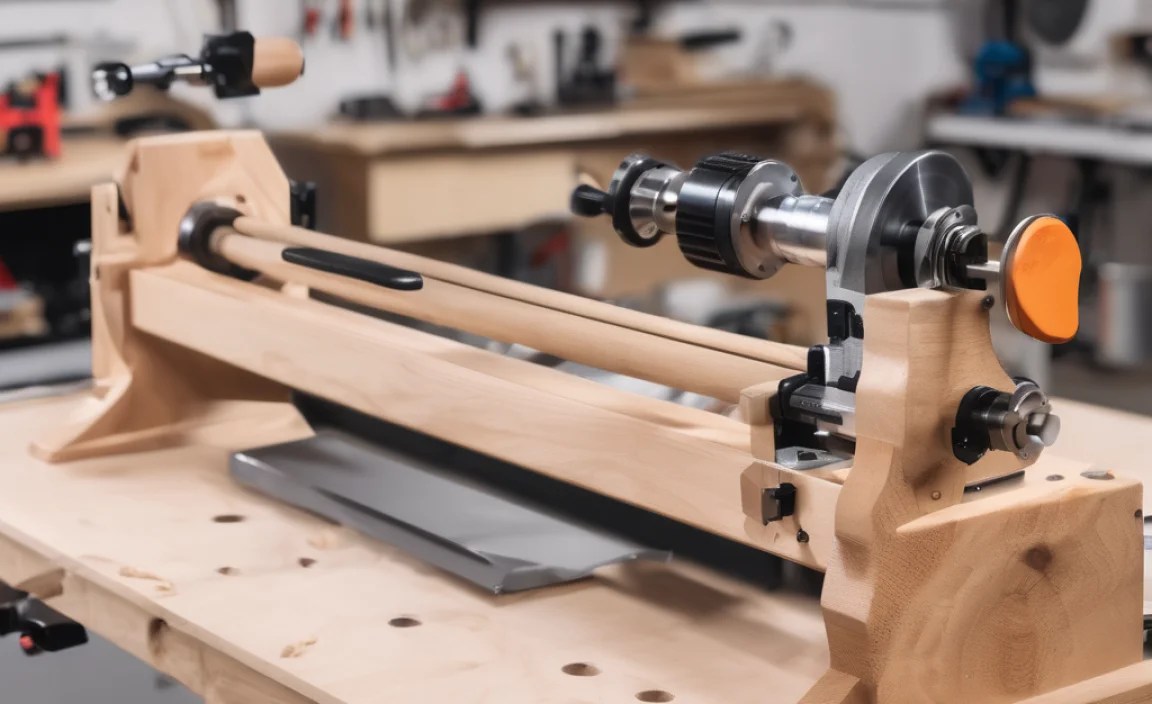

Understanding the Basic Principles

At its core, a wood lathe duplicator works by transferring the movement of a master pattern to the cutting tool. There are a few common designs, but they generally involve:

A Master Template: This is your “masterpiece” – a piece of wood cut to the exact shape you want to replicate.
A Follower/Tracer: Usually a bolt or pin that slides along the edge of your master template.
A Tool Holder: This holds your cutting tool and is connected to the follower.
A Mounting System: This attaches the duplicator securely to your lathe bed.

As you move the follower along the template, the connected tool holder moves in tandem, guiding your chisel to carve a matching shape into the workpiece mounted on the lathe. It’s a brilliant mechanical advantage that can seriously upgrade your turning game.

Essential Tools and Materials for Your DIY Duplicator

Building a DIY wood lathe duplicator doesn’t require an exotic toolbox. You can often use materials you might already have or can source easily from a hardware store or lumberyard. Here’s a breakdown of what you’ll typically need. Remember, precise measurements are important, so a good tape measure or ruler is key. For safety, always wear safety glasses and follow manufacturer guidelines for your tools.

Materials List:

Wood: For the main structure (e.g., hardwood like oak or maple, or even good quality plywood for less critical parts). Consider pieces around 3/4″ to 1″ thick.
Sliding Mechanism:

A long bolt (e.g., 3/8″ or 1/2″ diameter, 12-18″ long) for the follower/tracer.
Bolts, nuts, and washers for assembly and adjustments.
For a smoother slide, consider delrin, UHMW tape, or even a thin layer of wax.

Mounting Hardware:

Angle brackets or metal plates for securing the duplicator to the lathe bed.
Bolts, nuts, and washers to attach the mounting hardware.

Tool Holder: This can be a block of wood with a cutout for your tool, or a more robust metal clamp if you’re comfortable with metalworking.
Master Template Material: Typically hardwood or a dense plywood.
Fasteners: Wood screws, machine screws, nuts, and bolts.

Tools List:

Measuring Tools: Tape measure, ruler, pencil.
Cutting Tools:

Hand saw or power saw (miter saw, table saw, bandsaw) for cutting wood pieces.
Drill and drill bits (including a spade bit or Forstner bit if you need larger holes).
Jigsaw or scroll saw for cutting curves for the template.

Assembly Tools:

Screwdriver set.
Wrench set or adjustable wrench.
Clamps (bar clamps, C-clamps).

Optional, but helpful:

Sander (orbital or belt sander) for smoothing edges and creating the template.
Wood file or rasp.
a metalworking vise if you plan to fabricate parts from metal.

The exact dimensions will depend on your lathe and the size of the workpieces you intend to duplicate. It’s always a good idea to measure your lathe bed and the swing of your lathe to ensure the duplicator will fit and function correctly. For more advanced builds or to ensure a robust sliding mechanism, exploring materials like aluminum extrusion or linear rails can take your duplicator to the next level, but for a beginner build, wood and basic hardware are perfectly sufficient.

Step-by-Step Build Guide: A Simple Duplicator Design

This guide outlines a common and effective design for a DIY wood lathe duplicator. We’ll focus on a stable, user-friendly model that’s achievable for most DIY enthusiasts. Safety first: always disconnect power to your tools when making adjustments or before starting. Make sure your workspace is clean and clear.

Step 1: Design and Measure

Before cutting anything, sketch out your design. Consider the length of your lathe bed, the distance from the bed to your workpiece, and the overall range of movement you’ll need for the tracer. A good starting point is a duplicator that can handle workpieces up to, say, 12-18 inches long. Measure the dimensions of your lathe’s tool rest post or ways (the part of the bed your tool rest slides on) to determine how you’ll mount the duplicator.

You’ll essentially be building a movable arm that slides along the lathe bed, with a tracer on one end and a tool holder on the other. The crucial part is the connection between the tracer and the tool holder, which needs to be rigid enough to transfer precise movements accurately.

Step 2: Construct the Main Sliding Beam

This beam is the backbone of your duplicator, sliding along your lathe’s bed. You’ll need two parallel pieces of wood (e.g., 1×3 or 1×4 hardwood) and a way to hold them together while allowing them to slide. A common method is to create a “U” shape or a channel:

Cut two identical lengths of wood. These will become the top and bottom of your sliding beam. The length should be determined by the travel you need, plus extra for mounting.
Cut two shorter pieces of wood that will act as spacers between the longer pieces. These spacers will create a channel for the lathe bed or a separate track to slide on.
Assemble these into a sturdy beam. You can use wood screws and perhaps some glue for extra strength. Ensure the channel between the top and bottom pieces is precisely the width of your lathe bed or the track it will ride on.

Tip: To help the beam slide smoothly, you can line the inside of the channel with UHMW (Ultra-High Molecular Weight) tape or a thin layer of furniture wax.

Step 3: Create the Tracer/Follower Assembly

This is where the magic happens. The tracer needs to move freely along the edge of your master template.

Take one of the long pieces of your main sliding beam (or a separate piece attached to it).
Drill a hole through it to accommodate your tracer bolt. The tracer bolt should be a smooth, sturdy bolt, ideally with a rounded or slightly pointed tip that will easily follow the template’s contours.
Mount the bolt so it can slide freely within this hole but isn’t excessively loose. You might use a few washers or bushings. A wing nut on the bolt can help you set the tension or lock it in place if needed.

The follower bolt should be positioned so its tip is in the same plane as the cutting edge of your tool.

Step 4: Fabricate the Tool Holder

This part of the duplicator will hold your woodturning chisel.

On the opposite end of the sliding beam (or the other long piece if you made a “sandwich” style beam), create a secure holder for your tool.
A simple method is to cut a notch or a slot that matches the shank of your chisel. You can then use a bolt and wing nut to clamp the chisel in place.
Alternatively, you could attach a metal bracket or even modify a standard tool rest to serve as a tool holder. The key is to hold the tool rigidly and at a consistent height and angle relative to the tracer.

Ensure the tool holder allows for some adjustment in height and angle to match different chisels and turning styles.

Step 5: Build and Attach the Mounting System

This is how your duplicator attaches to the lathe.

Measure the tool rest post or the ways of your lathe.
Fabricate or acquire mounting blocks or brackets that will securely attach your sliding beam to the lathe. These might be simple wooden blocks with holes, or they could involve metal L-brackets for added strength.
The mounting should allow the sliding beam to move freely along the lathe bed without wobbling.

Safety Note: Ensure the mounting is robust. A poorly secured duplicator can be a safety hazard. Refer to resources like Woodworkers Institute’s safety guidelines for best practices.

Step 6: Create Your Master Template

Now for the creative part!

Select a piece of hardwood or dense plywood for your template.
Trace the desired shape onto the wood. You can use aencil, or even cut a shape from paper and trace around it.
Use a bandsaw, jigsaw, scroll saw, or even files and rasps to carefully cut out and refine your template shape.
The edge of the template needs to be smooth and free of bumps so the tracer can follow it precisely. Sand it thoroughly.

The template attaches to the sliding beam, usually on the same side as the tracer, allowing your tool to follow its contour. You might use small screws or clamps to hold the template in place. Make sure the template edge is perfectly parallel to the direction of travel for the tracer.

Step 7: Testing and Calibration

With everything assembled, it’s time for a test run.

Mount a scrap piece of wood onto your lathe.
Position the duplicator so the tracer is against your master template, and your turning tool is in the tool holder, ready to engage the workpiece.
Start the lathe at a slow speed.
Gently move the duplicator’s sliding beam, guiding the tracer along the template. Your tool should be carving a matching shape into the workpiece.
Make small adjustments to tool holder height and angle as needed for optimal cutting.

It’s crucial to ensure that the profile traced by the follower is directly transferred to the cutting tool. This might involve precise alignment of the tracer bolt, the tool holder, and the workpiece. For perfect mirroring, the distance between the tracer and the tool’s cutting edge needs to be consistent.

Improving Your DIY Wood Lathe Duplicator

Once you have a basic duplicator working, there are several ways to refine and improve its performance. Think of these as potential upgrades as you gain experience:

Enhancements for Smoother Operation:

Linear Bearings/Rails: For ultimate smoothness and precision, consider incorporating small linear bearings or rails instead of just wood-on-wood sliding. This significantly reduces friction and wear, leading to more accurate results. Websites like Rockler offer components that might be adaptable.
Ball-Headed Tracer: Replacing the bolt tracer with a ball bearing or a smooth, rounded rod can reduce friction and improve how it follows the template.
Adjustable Pressure: Incorporate a spring-loaded mechanism to apply constant, gentle pressure of the tracer against the template. This helps maintain contact and ensures accuracy, even if the template isn’t perfectly flat.

Template Design Improvements:

Material Choice: For very intricate or frequently used templates, consider using denser hardwoods, phenolic resin boards, or even thin pieces of metal for durability.
Bolt-On Templates: Design your duplicator so templates can be quickly and accurately attached and removed. This is essential for efficiency when making multiple parts.
Edge Hardening: For wooden templates, you can sometimes harden the tracing edge by carefully applying a thin coat of epoxy resin and sanding it smooth after curing.

Ergonomics and Usability:

Longer Travel: If you need to duplicate longer items, extend the length of your sliding beam and ensure your mounting system can handle the increased leverage.
Tool Holder Versatility: Design a tool holder that can accommodate a range of chisel sizes and types, or even accept a small router if you’re thinking outside the box (though this requires extreme caution and advanced planning).
Dust Collection: While not strictly part of the duplicator’s function, consider how dust collection might be integrated, especially if your template design creates specific dust patterns.

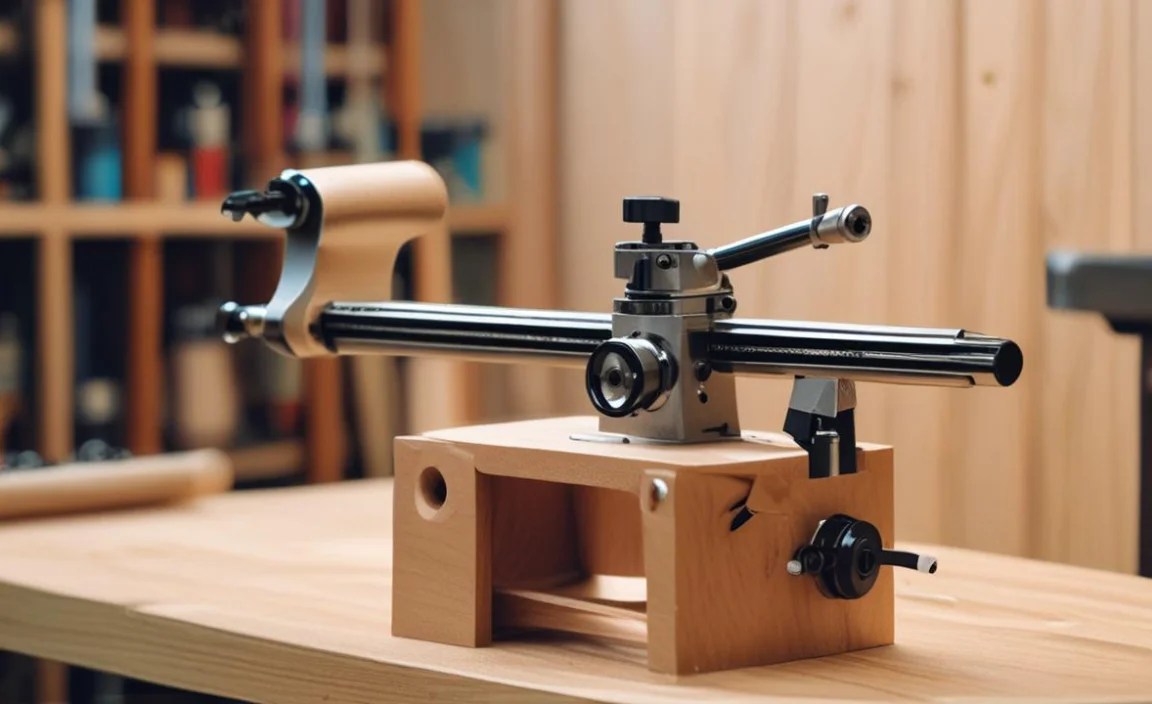

Advanced Duplicator Concepts & Considerations

For those looking to push the boundaries of their DIY duplicator, several advanced concepts can be explored. These often involve a blend of woodworking and basic metalworking skills, and can significantly enhance precision and capability.

Types of Duplicator Movements:

The basic design described uses a simple linear slide. However, more complex mechanisms exist:

Pantograph Style Duplicators:

These use a system of linked arms that can reduce or enlarge the tracer’s movement, allowing you to create scaled versions of a template or to work with a larger template for finer control. They are more complex to build but offer greater versatility.

Sliding Carriage Systems:

Similar to the basic design, but often incorporating more robust guide rails and bearings, much like those found on CNC machines. These offer superior rigidity and smooth operation. You can find small linear bearing systems designed for DIY CNC projects that can be adapted. For a good overview of machining principles, NIST’s advanced manufacturing pages offer foundational knowledge.

Template Material and Precision:

The accuracy of your duplicator is directly tied to both the precision of its construction and the quality of your master template. For high-precision work, consider:

Metal Templates: Thin sheet aluminum or brass can be cut and filed to create very durable and precise templates.
Engraved Templates: Using a CNC router or even a skilled hand to engrave a precise profile into a hard material.
Multi-Axis Templates: For more complex 3D shapes, some advanced duplicators can move in multiple axes, though this pushes into the realm of CNC machining and is beyond a simple DIY wood duplicator.

Connecting to the Lathe:

While bolting to the tool rest post is common, other mounting methods can offer more stability:

Direct Bed Mounting: If your lathe bed has T-slots or mounting points, you can connect directly to these for a more secure and vibration-dampening setup.
Tool Rest Replacement: In some designs, the duplicator essentially replaces the standard tool rest, mounting directly to the tool post or carriage.

It’s vital to remember that as you increase complexity and precision, the demands on craftsmanship and material quality also increase. Always prioritize safety and start with simpler modifications before attempting very complex designs.
