Have you ever wondered how a metal lathe works? It’s more than just spinning metal. The spindle speed plays a key role in shaping and cutting materials. Understanding spindle speed helps you create better projects.
Imagine you’re building a model airplane. If you cut the parts too fast, they might break. But if you’re too slow, it can waste time and material. That’s where the gear train comes in. The gear train alters the spindle speed to match your needs.
Did you know that a perfect spindle speed can make your work easier? By adjusting the gear train, you control how fast the lathe spins. This ensures smooth cuts and precise shapes. Learning about spindle speed and gear trains can open up a world of possibilities in your metalworking journey.
Ready to dive deeper? Let’s explore how the spindle speed and gear train work together to create amazing metal parts.

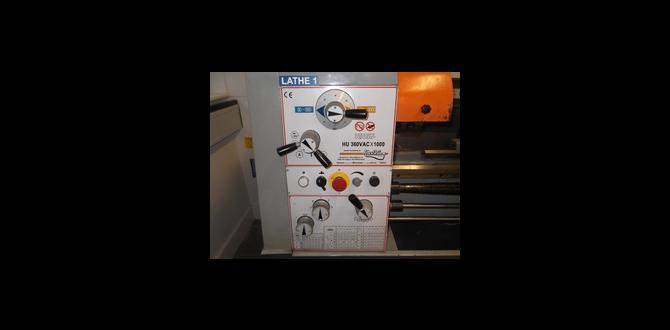

Understanding Spindle Speed In Metal Lathe Gear Train Systems
Spindle Speed Metal Lathe Gear Train
The spindle speed on a metal lathe is crucial for precision work. The gear train regulates this speed, affecting how smoothly the machine operates. Did you know that different materials require different speeds? For example, softer metals need lower speeds, while harder ones can take higher speeds. Understanding gear ratios helps users choose the right settings. This knowledge can improve both the finish of the workpiece and the life of the tools used.What is Spindle Speed?
Definition of spindle speed in the context of metal lathes. Importance of spindle speed for machining operations.Every metal lathe works by spinning a material. This spin is known as spindle speed. It measures how fast the spindle rotates. Spindle speed is important for machining operations. It affects how well a machine can shape metal. Too slow or too fast can cause problems. Finding the right speed helps create smooth and accurate cuts.
Why is spindle speed important?
Spindle speed ensures the best performance and accuracy. Here are some key points:
- Correct speed improves cut quality.
- Proper spindle speed reduces tool wear.
- It prevents overheating and damage to materials.
Knowing how to set spindle speed leads to better results in machining.
Calculating Spindle Speed
Formula for calculating spindle speed in metal lathes. Factors influencing spindle speed calculations.Want to get your metal lathe spinning like a pro? Use the formula: RPM = (Cutting Speed x 12) / (π x Diameter). This helps determine spindle speed. Remember, factors like material type and tool size count too. Tough materials need lower speeds or else they might start a mini meltdown! Don’t forget that bigger diameters require slower speeds. For the math whizzes, here’s a handy table:
| Material | Suggested RPM |
|---|---|
| Aluminum | 1000-3000 |
| Brass | 800-2000 |
| Steel | 600-1200 |
Keep these tips in mind, and you’ll be spinning like a bug on a record player in no time!
Effects of Spindle Speed on Machining Quality
Relationship between spindle speed and surface finish. Impact of spindle speed on tool wear and durability.Spindle speed greatly affects how well a machine works. Higher speeds often lead to a smoother surface finish. This means your final product looks better. However, faster speeds can wear out tools faster, decreasing their durability. It’s important to find a balance. Too slow can ruin finishing, while too fast wears tools out.
- High spindle speed = smoother finish.
- Fast speeds = more tool wear.
- Balance is key for best results.
How does spindle speed affect machining?
Higher speeds can improve surface quality but increase tool wear. Finding the right speed is important for both quality and tool life.
Types of Gear Trains in Metal Lathes
Different gear train configurations: simple vs. compound. Advantages and disadvantages of each type.In a metal lathe, gear trains help control spindle speed. There are two main types: simple and compound. A simple gear train uses fewer gears. This means it’s easier to set up and use. But, it may not adjust speeds as well. On the other hand, a compound gear train has more gears. This gives it better speed options, but it can get tricky to manage. So, if you’re feeling adventurous, the compound might be for you! But remember, with great gears comes great responsibility!
| Type | Advantages | Disadvantages |
|---|---|---|
| Simple | Easy to use | Limited speed options |
| Compound | Better speed control | More complex setup |
Adjusting Spindle Speed in Metal Lathes
Methods for changing spindle speed in various lathe models. Considerations for selecting optimal spindle speeds for different materials.Changing the spindle speed on metal lathes can be as easy as flipping a switch or turning a dial. Different lathe models have unique methods for adjustment, so check your specific machine. For materials like wood or aluminum, higher speeds often work best. However, tougher metals may need slower speeds to keep things cool. Here’s a handy table to guide you:
| Material | Optimal Speed (RPM) |
|---|---|
| Wood | 800 – 2000 |
| Aluminum | 500 – 1500 |
| Steel | 150 – 600 |
| Brass | 300 – 1000 |
Remember, the right speed helps you avoid mistakes. It’s less about speed and more about finding your groove. Think of it as a dance—too fast and you’ll step on toes!
Common Problems Related to Spindle Speed
Issues caused by incorrect spindle speed settings. Troubleshooting tips for spindle speedrelated problems.Spindle speed issues can lead to problems in your projects. If the speed is too high or low, it may cause poor cuts or even damage your materials. To fix these issues:
- Check your machine settings.
- Consult the manual for recommended speeds.
- Listen for unusual noises while operating.
- Examine the workpiece for any signs of trouble.
By following these tips, you can ensure your projects run smoothly.
What are the common issues with spindle speed?
Common issues include vibrations, unusual noise, and improper cutting quality. Adjusting spindle speed can resolve these problems.
Best Practices for Managing Spindle Speed
Recommendations for operators to ensure optimal performance. Safety considerations when working with spindle speeds.To manage spindle speed effectively, operators should follow a few best practices. First, always check the machine settings before starting. Regular maintenance keeps performance high. Use protective gear, like goggles and gloves, to stay safe while working. Watch out for any unusual sounds or vibrations—these could signal a problem. Keeping an eye on these details helps ensure smooth operations.
- Check settings regularly.
- Perform routine maintenance.
- Wear safety gear at all times.
- Listen for unusual sounds.
What is the best way to set spindle speed?
The best way to set spindle speed is to refer to the machine manual and follow recommended guidelines based on the material being used. Always double-check settings before operation.
Conclusion
In conclusion, understanding spindle speed in a metal lathe’s gear train is important for precise machining. You learned that the right speed affects cutting quality and tool life. We encourage you to experiment with different speeds on your lathe. This hands-on practice will deepen your understanding and improve your skills. For more tips, check out reliable machining resources and guides.FAQs
Certainly! Here Are Five Questions Related To The Spindle Speed Of A Metal Lathe Gear Train:Sure! The spindle speed is how fast the metal lathe turns. It helps shape metal into different parts. You can change the speed by switching gears in the gear train. A faster speed is good for some jobs, while slower speed is better for others. We need to choose the right speed for our project!
Sure! Please share the question you want me to answer.
What Is The Purpose Of A Gear Train In Controlling The Spindle Speed Of A Metal Lathe?A gear train helps us change how fast the spindle, or spinning part, of a metal lathe moves. By using different gears, we can make it spin faster or slower. This is important because different metal jobs need different speeds. So, with a gear train, we can work better and create better parts.
How Do Different Gear Ratios In A Metal Lathe Affect The Spindle Speed And Torque Output?Different gear ratios change how fast the spindle spins and how much power it has. If you use a higher gear ratio, the spindle spins faster but with less power. With a lower gear ratio, the spindle spins slower but has more power. This helps you pick the right speed and strength for your cutting jobs. So, gear ratios help you control what your lathe can do!
What Are The Common Types Of Gear Trains Used In Metal Lathes To Regulate Spindle Speed?In metal lathes, we often use gear trains to change how fast the spindle spins. Common types include spur gears and bevel gears. Spur gears are flat and run parallel to each other, while bevel gears are angled. These gears help us pick the right speed for our work. By using different gears, we can make sure our lathe runs smoothly.
How Can An Operator Calculate The Spindle Speed Based On The Gear Train Configuration In A Metal Lathe?To calculate the spindle speed on a metal lathe, first, find the number of teeth on the gears. Count how many teeth the gear connected to the motor has and how many the spindle gear has. You can then use a simple formula: divide the motor gear’s teeth by the spindle gear’s teeth and multiply that by the motor’s speed. This tells you how fast the spindle will spin!
What Are The Implications Of Using Improper Spindle Speeds For Various Materials In Metal Lathe Operations?Using the wrong spindle speed on a metal lathe can be risky. If it’s too fast, it can burn or break the material. If it’s too slow, the cutting tool can get stuck and you won’t get a clean finish. You need to match the speed for each material, like wood or metal, for the best results. This helps everything work safely and smoothly.
