Have you ever wondered how machines shape metal into precise parts? One key player in this process is the tool post on a metal lathe. It’s a small but mighty piece that holds the cutting tool in place, and it plays a big role in how much torque is applied during metalwork.
Imagine you’re trying to cut a metal rod. You need to control the machine carefully to get the right shape. The torque from the tool post helps you do just that. The better the setup, the smoother your cuts will be.
Did you know that the right amount of torque can make a huge difference? Too little torque can lead to sloppy work, while too much can break your tools. It’s all about finding that perfect balance.
This article will guide you through the world of tool post metal lathe torque. You’ll learn why it matters and how to get the best performance from your lathe. So, are you ready to dive in and discover the power of torque?

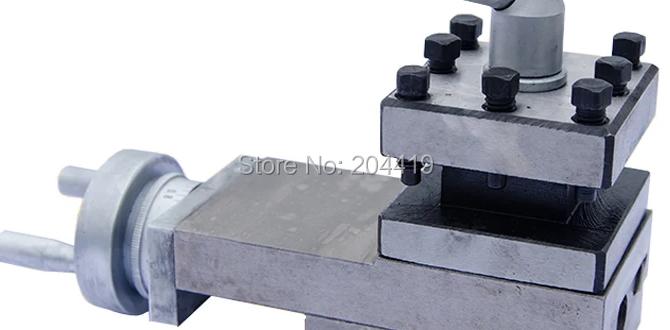

Tool Post Metal Lathe Torque: Understanding Its Importance
Tool Post Metal Lathe Torque
When using a tool post on a metal lathe, torque plays a crucial role. Proper torque ensures that the cutting tool remains secure during operation. If the torque is too low, the tool could slip, leading to poor cuts. On the other hand, excessive torque might damage the tool or workpiece. A good tip is to always check the manufacturer’s specifications to find the right settings. Did you know the right torque can make your projects easier and more precise? It’s true!What is Tool Post Torque?
Definition and importance in metalworking.. How torque affects machining accuracy..Torque is the twisty power that keeps tool posts tight and secure on a metal lathe. It’s like a superhero holding everything together! Too little torque can lead to wobbly cuts, while too much can damage parts. This balance is key for machining accuracy. Think of it this way: just like a chef needs the right amount of spice, a machinist needs the right amount of torque for perfect results.
| Torque Level | Effect |
|---|---|
| Low | Wobbly and uneven cuts |
| Just Right | Smooth and precise machining |
| High | Damage to the tool or lathe |
You wouldn’t want your dessert too sweet, right? Well, the same goes for torque in metalworking!
Calculating Torque for Tool Posts
Key formulas for calculating torque on a metal lathe.. Factors influencing torque requirements (material type, cutting tool)..Finding the torque for tool posts on a metal lathe can be simple if you know the right formulas. Torque is influenced by factors like the type of material you’re working with and the cutting tool you use. A common formula for torque is: Torque = Force x Distance. Keep in mind, softer materials need less torque, while hard ones demand more power. And remember, choosing the right cutting tool is like picking pizza toppings—get it right, and you’ll have a slice of success!
| Material Type | Torque Requirement |
|---|---|
| Aluminum | Low |
| Steel | Moderate |
| Titanium | High |
Choosing the Right Torque Settings
Recommended torque values for various materials.. Tips for adjusting torque based on specific machining needs..Selecting the right torque is key for strong and safe machining. Different materials need different torque settings. For instance, softer metals like aluminum need lower torque, while harder ones, like steel, require more. Here’s a quick guide:
- Aluminum: 20-30 ft-lbs
- Steel: 40-60 ft-lbs
- Brass: 15-25 ft-lbs
Adjust torque settings based on your project. Consider factors like the type of cutting tool and material thickness. Testing with lower torque first can save you time and trouble. Always remember: right torque means smooth cuts!
What are common torque settings for different materials?
Aluminum usually needs 20-30 ft-lbs of torque. Steel might need up to 60 ft-lbs. And for Brass, aim for 15-25 ft-lbs.
Troubleshooting Torque Issues
Common problems associated with improper torque settings.. Solutions and adjustments to improve cutting performance..Having trouble with your lathe’s torque settings? You’re not alone! Bad torque can lead to uneven cuts or even broken tools. Common signs include strange noises or a sputtering tool that doesn’t want to cooperate. Don’t fret; there are solutions! First, double-check your settings. Adjust the torque until you hear the sweet sound of smooth cutting. Use this handy chart:
| Problem | Solution |
|---|---|
| Uneven Cuts | Re-check torque settings |
| Strange Noises | Inspect tool and adjust settings |
| Tool Breakage | Lower the torque |
With proper adjustments, you’ll be back to making perfect cuts in no time. Remember, if your lathe starts to complain, it’s probably trying to tell you something!
Best Practices for Tool Post Maintenance
Routine maintenance to ensure consistent torque application.. Signs of wear and tear affecting tool post performance..Keeping your tool post in top shape is easier than you think! Routine checks are key. Make sure to tighten all the bolts regularly to ensure consistent torque application. Look out for signs of wear and tear, like rust or unusual noises. These can mean your tool post isn’t working as it should. Think of it like checking your bike tires; you want a smooth ride, not a bumpy one!
| Signs of Wear and Tear | Recommended Actions |
|---|---|
| Rust on the tool post | Clean and oil regularly |
| Unusual noises when operating | Inspect for loose parts |
| Difficulty in adjusting | Check alignment and lubrication |
Comparative Analysis with Competitor Tools
Performance comparison of standard tool posts versus advanced models.. User reviews and experiences with different tool post systems..Tool posts are like the shoes of a metal lathe—they can make all the difference! Standard tool posts are reliable but might lack the fancy features of advanced models. Turning with basic setups can feel like wearing flip-flops while sprinting. User reviews show that those with advanced systems claim better stability and performance. One user said, “Using an advanced tool post is like going from a bicycle to a race car!” For those curious, here’s a quick comparison:
| Type | Performance | User Experience |
|---|---|---|
| Standard Tool Post | Reliable but limited | Good for beginners |
| Advanced Tool Post | Superior precision | Highly rated by pros |
Ultimately, the choice depends on your project needs. A great tool post can make your metalworking a breeze!
Case Studies and Real-Life Applications
Examples of successful projects utilizing correct torque settings.. Lessons learned from industry professionals regarding tool post torque..Many successful projects show the importance of using the right torque settings. For instance, a local shop crafted precision gears for a competition. They found that correct torque made the gears fit perfectly. Lesson learned? Too much torque can ruin a project! An expert once said, “Torque is friend, but overdoing it makes it an enemy!”
| Project | Torque Setting (ft-lbs) | Outcome |
|---|---|---|
| Precision Gears | 25 | Perfect fit! |
| Metal Bracket | 18 | Broke during testing. |
These examples show that torque isn’t just a number—it’s the key to success!
Conclusion
In summary, understanding tool post metal lathe torque is crucial for effective machining. Proper torque helps secure your tools and improves accuracy. Always check the settings before starting your work. If you want to learn more, read guides or watch videos on lathe mechanics. This knowledge will enhance your skills and boost your confidence in using a metal lathe!FAQs
What Factors Influence The Torque Required For Cutting Metals On A Lathe Tool Post?The torque needed for cutting metals on a lathe tool post depends on a few things. First, the type of metal matters. Softer metals need less torque, while harder ones need more. Second, the tool’s sharpness affects how easily it cuts. A sharp tool requires less force. Lastly, the speed you turn the lathe and how deep you cut also change the torque needed.
How Can Improper Torque Settings On A Lathe’S Tool Post Affect Machining Accuracy And Tool Wear?If you set the tool post on a lathe too tight or too loose, it can cause problems. A tool that is too tight might break, and one that is too loose may move around. This movement can make the shape of the part you’re making inaccurate. When the tool isn’t steady, it also wears out faster because it struggles to cut properly. Making sure the settings are just right helps keep everything working well.
What Torque Specifications Should Be Followed When Setting Up A Tool Post On A Metal Lathe?When setting up a tool post on a metal lathe, it’s important to follow the right torque specifications. Usually, you should tighten the bolts to about 25 to 35 foot-pounds. You can use a torque wrench to help you get it just right. This keeps everything secure and works well while you use the lathe. Always check your machine’s manual for exact numbers!
How Does The Material And Geometry Of The Cutting Tool Affect The Torque Required During Machining Operations?The material and shape of the cutting tool are very important. A strong tool can cut better and needs less effort. If the tool is sharp and has the right shape, it can slice through material easily. This means you don’t have to push as hard, which lowers the torque needed. So, choosing the right tool helps make work easier and faster!
What Are The Best Practices For Maintaining Optimal Torque Settings On A Metal Lathe’S Tool Post To Ensure Consistent Performance?To keep the tool post on a metal lathe working well, always check the tightness. You should tighten the screws with a wrench, but not too tight. Make sure to use a torque setting tool to get it just right. Regularly check the tool post for wear and tear. This way, you’ll have steady and smooth pieces every time you work!
