Wood Lathe Hollowing Rig Setup: Essential Guide

The best wood lathe hollowing rig setup involves precise alignment, secure mounting, and understanding your tools. This guide simplifies the process, ensuring you can hollow bowls and vessels safely and effectively, transforming your woodworking projects.

Hey there, woodworkers! Daniel Bates here from Lathe Hub. Ever looked at a beautiful hollow vessel or a perfectly hollowed bowl and thought, “How do they do that?” The secret often lies in a well-set-up hollowing rig for your wood lathe. It can seem a bit intimidating at first, with all those parts and adjustments. But don’t worry! Hollowing isn’t as tricky as it looks if you have the right setup and a little guidance. We’re going to break down exactly how to get your wood lathe ready for hollowing, making it simple and safe. Ready to turn those solid blocks into stunning hollow forms? Let’s get started!

What is a Wood Lathe Hollowing Rig?

A wood lathe hollowing rig is a specialized attachment designed to help you safely remove material from the inside of wood turning projects, like bowls, vases, and other hollow vessels. Think of it as a stable, precise way to hold and control specialized hollowing tools. Instead of freehanding long, potentially wobbly tools, the rig provides a consistent support system. This system typically consists of a tool rest that’s mounted to the lathe bed and a boom or arm that extends over the project. A sliding sleeve or holder then rides on this boom, supporting your hollowing tool very close to the cutting edge. This significantly increases control and reduces vibration, making the cutting action much smoother and safer, and is essential for achieving clean, consistent hollows.

Why You Need a Proper Hollowing Rig Setup

Trying to hollow out a bowl or vessel without a dedicated rig can be a recipe for disaster, or at least significant frustration. Here’s why getting the setup right is crucial:

• Safety First: Hollowing tools are long and the forces generated can be significant. Without proper support, a tool can dig in unexpectedly, leading to catches, kickbacks, and potential injury. A rig keeps the tool stable and under control.
• Improved Control: The rig acts as a steady rest for your tool. This close support allows you to make precise cuts, maintain consistent wall thickness, and avoid unwanted gouges or vibrations.
• Easier Operation: Long hollowing tools can be heavy and unwieldy. The rig supports the tool’s weight and guides its movement, making the process much less physically demanding and more enjoyable.
• Consistent Results: Whether you’re a beginner or experienced, a good setup helps you achieve clean, smooth interior surfaces and predictable wall thicknesses. This makes sanding and finishing much easier.
• Reduced Tool Wear: When tools are properly supported, they vibrate less and are less likely to be subjected to torsional stress, which can extend their lifespan. A well-aligned rig ensures the cutting edge is presented correctly to the wood.

Key Components of a Hollowing Rig System

Most hollowing rig systems share common components, though they might look slightly different depending on the manufacturer. Understanding these parts is the first step to a successful setup:

• Lathe Bed Mount: This is the base of the rig that attaches securely to your lathe’s bed. It needs to be sturdy and provide a stable foundation for the rest of the system.
• Tool Rest Post: A vertical post that often inserts into the bed mount. It supports the adjustable tool rest.
• Adjustable Tool Rest: This part holds the main boom and allows you to adjust the height and angle to match your tool and workpiece. It slides up and down the post and can usually pivot.
• Boom or Arm: A horizontal or slightly angled arm that extends over your lathe’s bed, parallel to the ways. Your tool holder slides along this.
• Tool Holder/Sleeve: This is what actually holds your hollowing tool. It slides along the boom and allows for movement in and out of the workpiece, as well as lateral movement. Some rigs have interchangeable sleeves to accommodate different tool shaft diameters.
• Locking Mechanisms: Knobs or levers that secure each adjustable part (height, angle, boom position, tool holder position) once you’ve made your adjustments.

Choosing the Right Hollowing Rig

Several types of hollowing rigs are available, each with its own pros and cons. Consider your lathe, your budget, and the types of projects you plan to do:

Types of Hollowing Rigs

• Simple Tool Rest Attachments: These are often simple boom-and-slide systems that attach directly to your existing tool rest post or the lathe bed. They are generally more affordable.
• Full Support Systems: These are more robust systems that might involve a dedicated bed mount and a more substantial articulated arm. They offer maximum stability.
• DIY Rigs: Many resourceful woodturners build their own hollowing rigs using materials like angle iron, pipes, and wood. This can be a cost-effective option for those with fabrication skills.

Factors to Consider

• Lathe Swing and Bed Length: Ensure the rig is designed for your lathe’s size. The boom needs to be long enough to reach the center of your largest planned projects, and the mount must be compatible with your lathe’s bed.
• Tool Diameter Compatibility: Check the size of the tool holder or sleeve. Can it accommodate the shafts of your existing or planned hollowing tools? Many come with adapters.
• Stability and Build Quality: Look for rigs made from sturdy materials with robust locking mechanisms. A wobbly rig defeats the purpose.
• Ease of Adjustment: How easy is it to move and lock the different parts? Smooth adjustments are key for quick setup and efficient work.
• Budget: Prices can vary significantly. Determine your budget and look for the best quality you can afford.

Referencing resources like the American Association of Woodturners (AAW) can provide insights into different setups and user experiences. While they don’t endorse specific products, their forums and publications often discuss effective rigging techniques and tools.

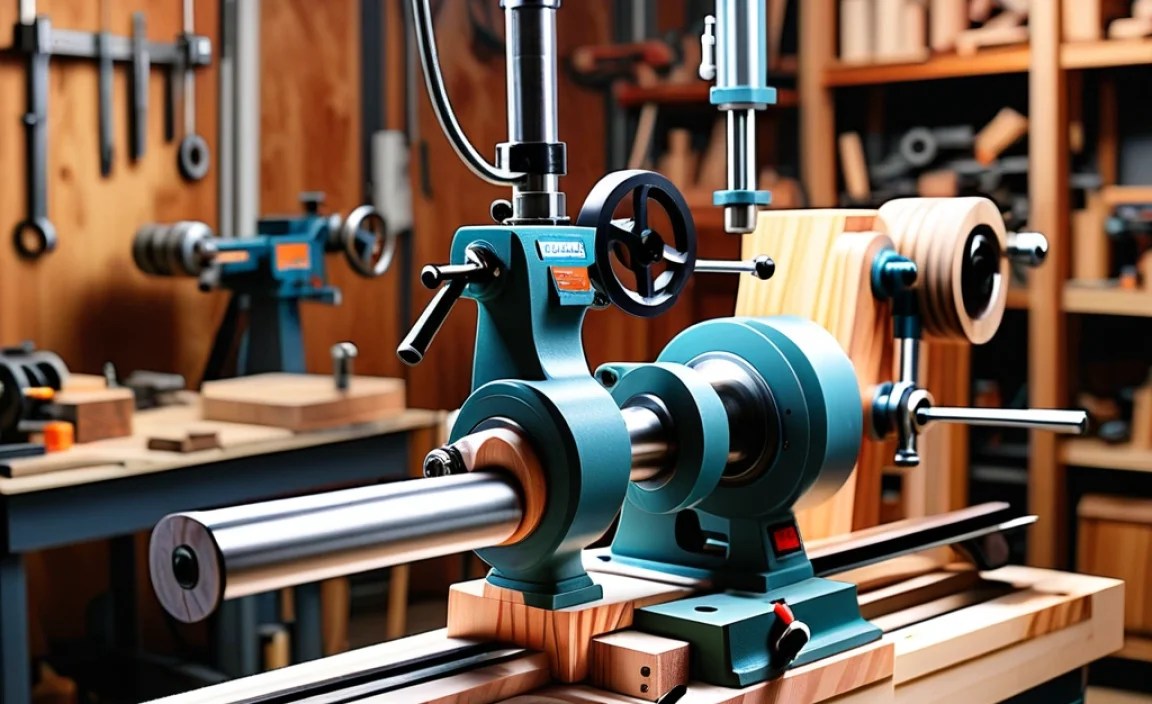

Essential Tools for Hollowing

Besides the hollowing rig itself, you’ll need a few specialized tools to effectively hollow out your wood projects:

• Hollowing Tools (Gouges): These are specifically designed for internal work and come in various shapes and sizes.
  • Hollowing Gouges: These often have a large flute and a curved cutting edge designed to shear wood cleanly from the inside. Examples include hook tools or specialized internal gouges.
  • Bowl Gouges (Modified): While standard bowl gouges are for external shaping, some very experienced turners adapt them or use smaller versions for very shallow internal work. However, dedicated hollowing tools are generally safer and more effective.
• Scrapers: For final smoothing of the interior surface, scrapers are invaluable. They remove tool marks left by gouges.
• Measuring Tools: Tools like calipers (both inside and outside) are crucial for checking wall thickness and ensuring uniformity. A digital caliper can be very handy.
• Sharpening System: Hollowing tools, like all woodturning tools, must be kept razor-sharp to cut effectively and safely. A good grinder, honing guides, and sharpening stones are essential.

Step-by-Step Guide: Wood Lathe Hollowing Rig Setup

Setting up your hollowing rig correctly is more than just attaching it to the lathe. It’s about ensuring perfect alignment and stability. Follow these steps carefully:

Step 1: Secure the Lathe and Mount

Before you do anything, ensure your lathe is stable and won’t move during operation. If you’re using a portable lathe, consider bolting it down or using anti-vibration mats. Attach the base of your hollowing rig securely to the lathe bed. Make sure it’s firmly seated and all locking mechanisms for the mount are tightened.

Step 2: Position the Tool Rest Post and Tool Rest

Insert the tool rest post into the bed mount. Slide it up until the height of the tool rest is roughly level with the center of your workpiece (the spindle centerline). You’ll fine-tune this later, but it’s a good starting point. Ensure the tool rest is perpendicular to the lathe bed for now.

Step 3: Mount the Boom and Tool Holder

Attach the boom arm to the tool rest. Ensure it’s securely locked in place. Now, attach the tool holder or sliding sleeve to the boom. Make sure it slides smoothly along the boom but locks firmly when needed.

Step 4: Align the Hollowing Rig with the Lathe Spindle

This is one of the most critical steps. You need the boom to be perfectly parallel to the lathe bed and the tool holder’s path of travel to be in line with the spindle. This ensures the tool moves smoothly in and out of the workpiece without binding or catching.

• Horizontal Alignment: With the tool rest adjusted to the spindle height and locked, position the tool holder at the furthest point from the headstock. It should be directly over the spindle centerline. Do the same at the tailstock end. Refer to your lathe’s manual to find the exact spindle height.
• Vertical Alignment: The boom should generally be positioned slightly below the spindle centerline when viewed from the side. Some prefer it dead center, others slightly below. The goal is to allow the tool to engage the wood at a comfortable cutting angle without digging in prematurely.
• Boom Parallelism: Ensure the boom is perfectly parallel to the lathe bed. You can check this by placing a straight edge or ruler along the bed and the boom.

Step 5: Adjust for Your First Project

Now it’s time to set up for the specific piece you’re about to hollow:

1. Mount Your Workpiece: Securely mount and balance your prepared blank on the lathe.
2. Find the Entrance Point: Position your hollowing tool in the tool holder. Place the tip of the tool just inside the rim of the opening where you want to start hollowing.
3. Adjust Tool Rest Height: Slide the tool rest up or down so that the lowest point of the tool’s cutting edge is aligned with the spindle center. This is crucial for safe and efficient cutting.
4. Adjust Boom Position: Move the boom so the tool holder is positioned appropriately to allow comfortable movement in and out of the workpiece. You want enough room to maneuver without the tool holder hitting the headstock or tailstock.
5. Set the Tool Holder Angle: The tool holder often has an adjustable angle. You want to position it so that when the tool is engaged in the wood, it cuts cleanly without binding. This angle will depend on the shape of your tool and the wood.

Step 6: Tighten All Locks

Once everything is aligned and adjusted, double-check that every locking knob or lever is securely tightened. A loose lock can shift during operation, leading to dangerous situations.

Hollowing Techniques with Your Rig

With your rig set up and tools ready, let’s talk about the actual process of hollowing.

Starting the Hollow

1. Begin at the Rim: Start by hollowing a shallow recess at the rim of the bowl or vessel. This creates a small lip that your tool can rest against as you move deeper.
2. Shear Cutting: Engage your hollowing tool with gentle pressure, presenting the cutting edge at a shearing angle to the wood. Move the tool in and out from the opening.
3. Incremental Removal: Don’t try to remove too much material at once. Take light passes, gradually deepening the hollow.

Maintaining Wall Thickness

This is where the rig truly shines. The stable support allows for consistent cuts.

• Use Your Calipers: Regularly stop the lathe and measure your wall thickness with calipers. Aim for a uniform thickness throughout the hollow.
• Feel the Cut: Pay attention to how the tool is cutting. A smooth shaving indicates a good cut. A chattering or tearing sound means you need to adjust your angle, depth, or sharpness.
• Controlled Movement: Move the tool smoothly along the boom and in and out of the hollow. Avoid jerky motions.

Working Deeper

As you go deeper, you may need to reposition the boom or adjust the tool rest height slightly. The key is to always keep the tool supported at or very near the spindle centerline.

Finishing the Interior

Once you’ve achieved the desired depth and wall thickness, you can switch to scrapers or very finely honed small gouges to create a smooth interior surface, ready for sanding.

Safety Precautions for Hollowing

Hollowing is one of the more advanced techniques on the lathe, so safety is paramount. Never compromise on these points:

• Always Wear Safety Gear: This includes a full face shield, hearing protection, and a dust mask or respirator.
• Secure Your Workpiece: Ensure your blank is well-balanced and securely mounted.
• Keep Tools Sharp: A sharp tool cuts cleanly and reduces the force needed, significantly lowering the risk of a catch.
• Never Over-Hollow: Leaving too little material, especially near the rim, can cause structural failure.
• Maintain Tool Support: Ensure the rig and tool holder are securely locked.
• Start Slow: Begin with light cuts and gradually increase depth as you gain confidence and experience.
• Be Aware of Dust: Wood dust can be harmful. Use dust collection and wear appropriate respiratory protection. The potential for fine dust is higher when hollowing.
• Know Your Limits: If something feels wrong, stop the lathe immediately. Don’t force the tool or try to push through a difficult cut.

Troubleshooting Common Hollowing Rig Issues

Even with the best setup, you might run into minor issues. Here’s how to tackle them:

Problem	Possible Causes	Solutions
Tool chatters or vibrates excessively.	Tool is dull. Rig is not tight. Boom is not parallel. Workpiece is unbalanced.	Sharpen tool. Tighten all locks on rig. Check boom alignment and adjust. Rebalance workpiece.
Tool digs in unexpectedly.	Tool angle is too steep. Hollowing too aggressively. Rig is not securely locked.	Adjust tool presentation angle. Take lighter passes. Check and tighten all rig locks.
Difficulty achieving uniform wall thickness.	Rig is misaligned or loose. Inconsistent tool control.	Re-align rig ensuring boom is parallel and perpendicular. Practice smooth, controlled movements. Use calipers frequently.
Tool holder slides too freely or not freely enough.	Locking mechanism issue. Dirt or debris in the slide.	Clean the slide mechanism. Lubricate if necessary (check manufacturer’s recommendation). Ensure locking knob is functioning correctly.
Boom feels unstable or flexes.	Rig is not designed for the size of the workpiece. Mount is loose.	Ensure the rig is rated for your lathe’s swing and project sizes. Securely tighten the bed mount. Consider a more robust rig if flex is consistent.

Maintaining Your Hollowing Rig

Like any workshop tool, your hollowing rig will perform best with a little regular maintenance:

• Clean Regularly: Dust and chips can accumulate in the sliding mechanisms. Wipe down the boom, tool holder, and tool rest periodically.
• Lubricate as Needed: Some sliding parts may benefit from a light lubricant. Consult your rig’s manual for recommendations. Avoid over-lubricating, which can attract dust.
• Check Lock Screws and Knobs: Ensure all locking mechanisms are functioning properly and screws are snug but not overtightened.
• Inspect for Wear: Periodically check for any signs of excessive wear on the boom, tool holder, or mount.
• Re-align Periodically: Even if nothing has come loose, it’s good practice to re-check the alignment of the boom and tool rest with the spindle centerline every so often, especially after moving the rig.

Frequently Asked Questions About Wood Lathe Hollowing Rig Setup

Here are some answers to common questions beginners have about setting up and using hollowing rigs:

Q1: Do I really need a dedicated hollowing rig for my wood lathe?

A1: While it’s technically possible to do some very basic hollowing without one, a dedicated rig dramatically improves safety, control, and the quality of your results. For anything beyond shallow, small projects, it’s highly recommended and often essential for safety.

Q2: How do I ensure the rig is truly aligned with the spindle centerline?

A2: The best method is to place a long dowel, straight edge, or the hollowing tool itself in the tool holder. With the lathe off, position the tool holder at both ends of the boom’s travel and check if the tool tip is directly above.
